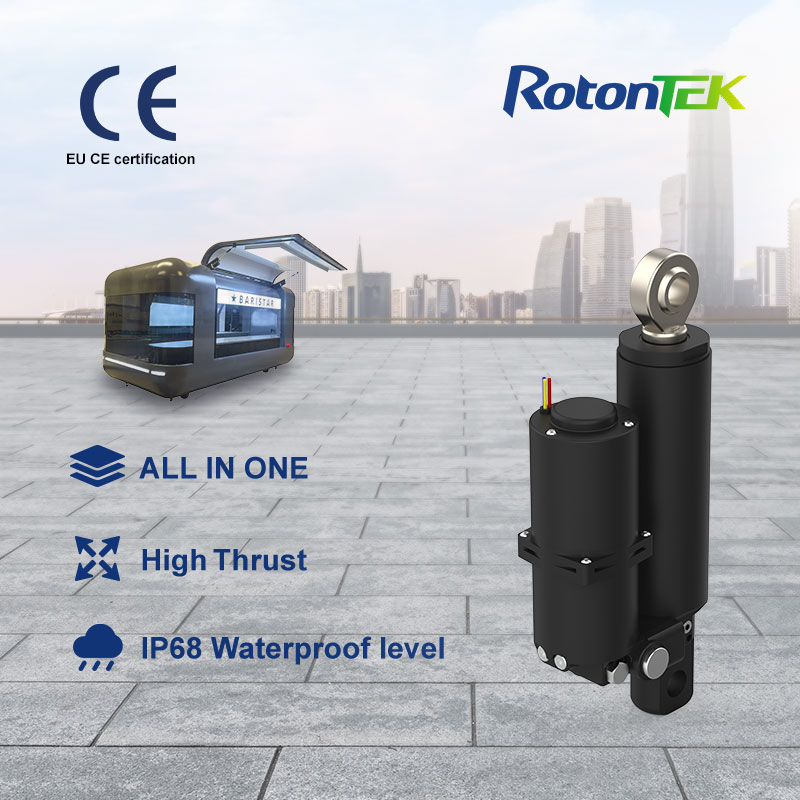

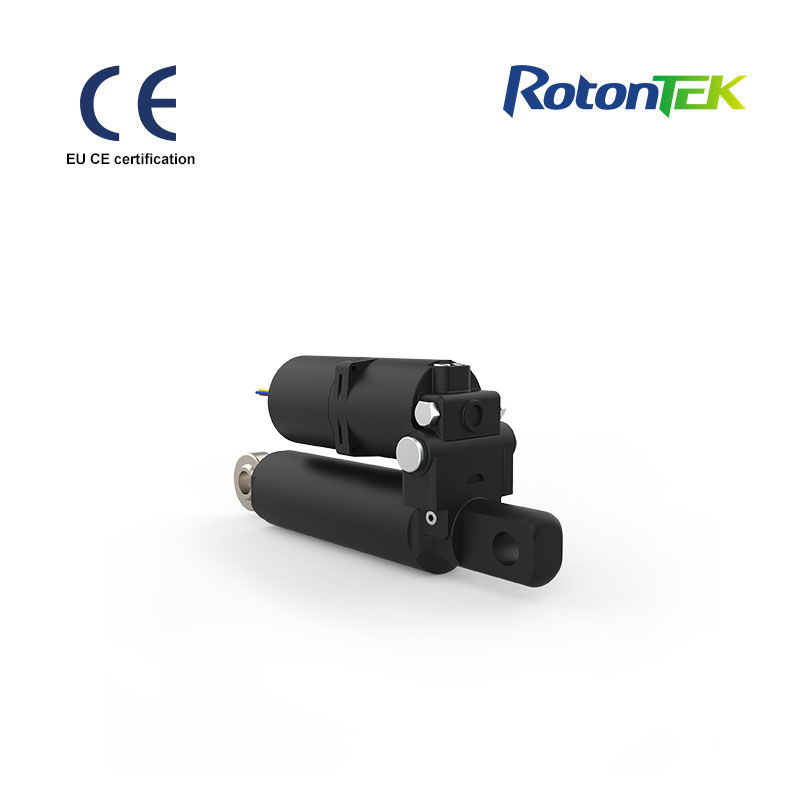

1-2.5T Hydraulic Linear Actuator stroke 100mm

Product Overview

The Rotontek’s 1-2.5T Hydraulic Linear Actuator is a versatile, high-performance actuator designed for various demanding applications. With a stroke length of 100mm, it delivers exceptional thrust capabilities ranging from 1 to 2.5 tons, ensuring smooth, reliable operation. Its IP68 waterproof rating makes it ideal for harsh environments, offering durability and consistent performance.

Advantages

All-in-One Design:

Integrated structure eliminates the need for external oil pipes, reducing installation complexity and risk of oil leakage.

Compact and space-saving design.

High Thrust and Smooth Operation:

Powered by a high-pressure piston pump to deliver consistent and powerful thrust.

Efficiency enhanced by 50% thrust improvement.

IP68 Waterproof Level:

Ensures full functionality even under water or in wet conditions.

Durable Build:

Constructed from 304# Stainless Steel and 45# Steel Aluminum Alloy, providing long-lasting performance.

Versatile Applications:

Compatible with a wide range of industries, from robotics to heavy machinery.

Detailed Specifications

Specification	Details
Model	EHY5030100
Stroke	100mm
Speed	10-16 mm/s
Power Rating	300-800W
Rated Voltage	DC 24~72V
Plunger Pump	0.3-0.6 cc/r
Max Thrust	1-2.5 Tons
Materials	304# Stainless Steel, 45# Steel Aluminum Alloy
Waterproof Level	IP68
Dimensions	– Diameter: Ø70mm (cylinder), Ø63mm (rod) – Installation Distance: 288mm (stroke included) – Length: 141.5mm (base section)

Applications

This actuator is ideal for a broad range of applications, including:

Flying Wing Door Extension:

Automotive or industrial folding door systems.

Underwater Robots:

Reliable performance in submersible machinery.

Sweepers:

For height adjustments and movement.

Forklift Trucks:

Used in industrial handling equipment.

Electric and Manual Lifting Trucks:

Provides lifting power in logistics and material handling.

Medical Beds:

Ensures smooth and precise adjustments in healthcare equipment.

Agricultural Harvesters:

Heavy-duty applications in farming machinery.

Dumper Trucks:

Effective in raising and lowering load containers.
