1-2.5T Hydraulic Linear Actuator stroke 50mm

Product Overview

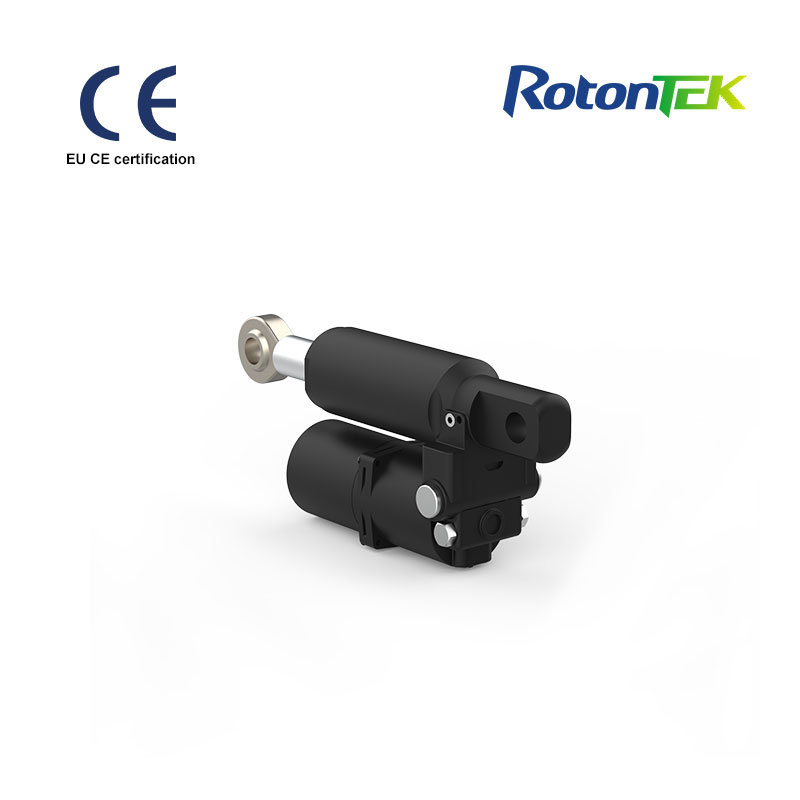

The Rotontek’s 1-2.5T Hydraulic Electric Actuator is an excellent performance compact actuator that will meet diverse needs for industrial application. It can come with 50mm of stroke length and is characterized by robust construction, accuracy, high thrust, and smooth operation. It also includes IP68 waterproof that provides complete reliability for even the most severe working conditions.

Advantages

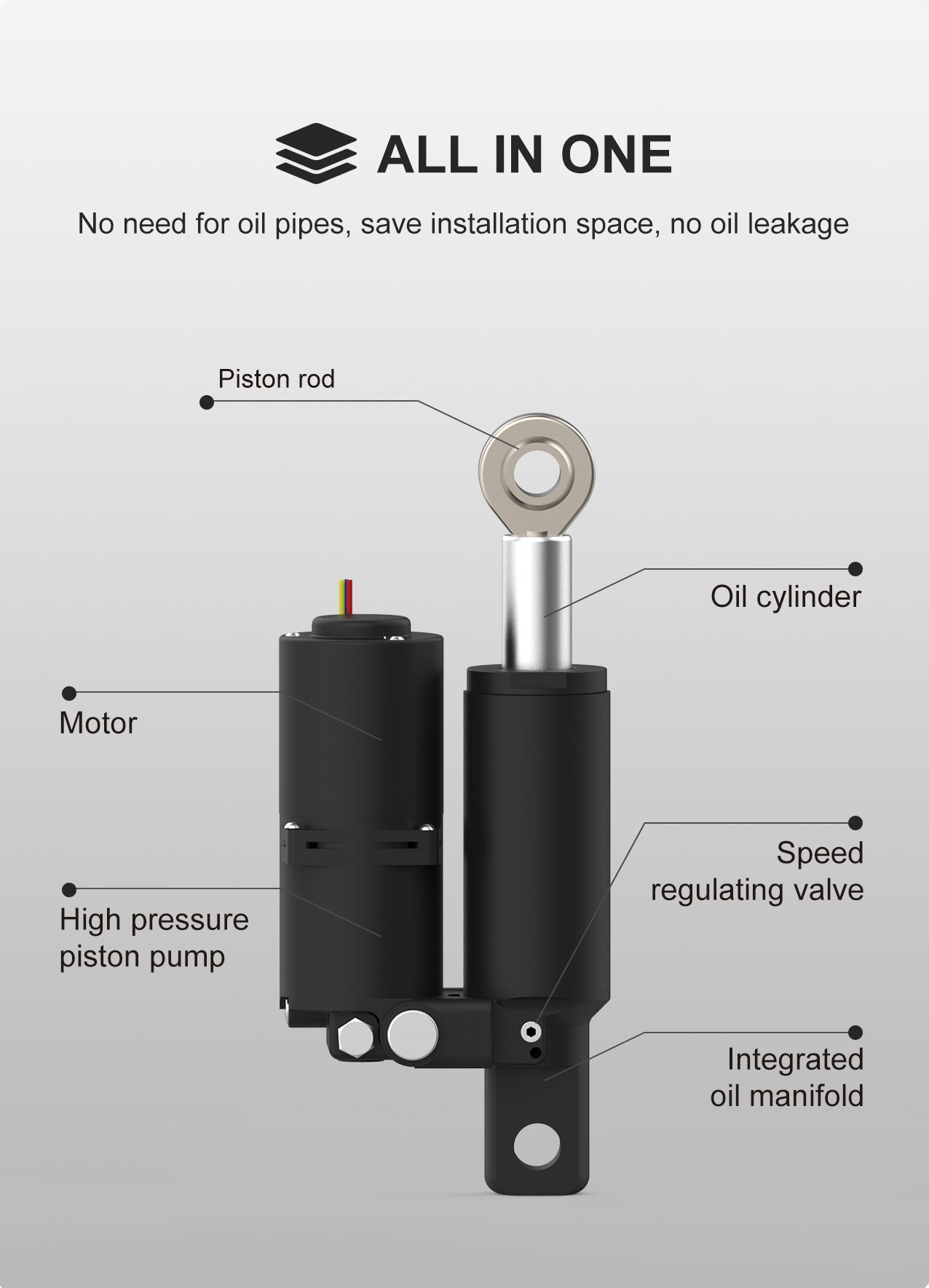

All-in-One Design:

Manifold and speed-regulating valve integrated.

No external oil pipe is required to save space in installation and avoid oil leakage.

High Thrust Capability:

Equipped with a high-pressure piston pump, it provides increased thrust by up to 50%.

Durability:

Made of 304# stainless steel and 45# steel aluminum alloy for high strength and anti-corrosion.

IP68 Waterproof Level:

It is fully sealed and can work reliably in water and under harsh conditions.



Wide Voltage Compatibility:

DC 24–72V, for various power systems.

Detailed Specifications

Specification	Details
Model	EHY503050
Stroke	50mm
Speed	10–16 mm/s
Power Rating	300–800W
Rated Voltage	DC24–72V
Plunger Pump Displacement	0.3–0.6 cc/r
Maximum Thrust	1–2.5T
Material	304# Stainless Steel, 45# Steel Aluminum Alloy
Waterproof Level	IP68
Cylinder Diameter	70mm
Mounting Hole Diameter	63mm
Overall Length	141.5mm

Applications

The Hydraulic Electric Actuator 1-2.5T has an extremely wide range of applications and is suitable for use in a number of areas, including:

Automobile and Machinery:

• Forklift trucks
• Electric and manual lifting trucks
• Agricultural harvesters
• Dumpers

Special Industrial Use:

• Flying wing door extension
• Sweepers
• Underwater robots

Medical Equipment:

• Medical beds

Heavy-Duty Use:

• Electric lifting trucks
• Industrial automation systems
