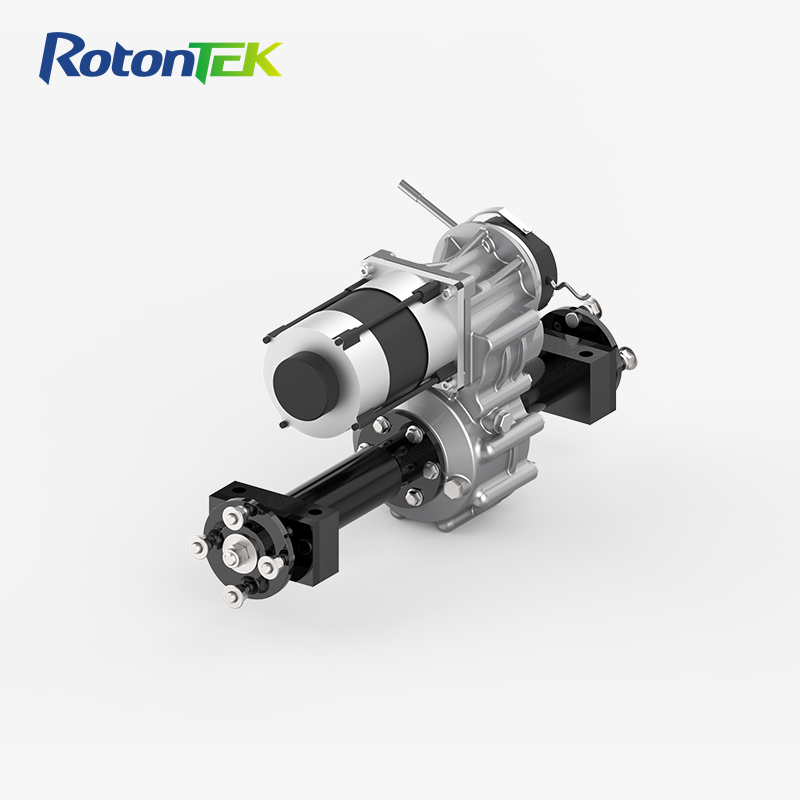

Low noise 3000W BLDC/AC Transaxle ND53-1-80.9
The 3000W BLDC/AC Transaxle ND53-1-80.9 is a high-efficiency transaxle offering high torque at low speeds, ideal for heavy-duty applications. It features a compact design, robust rigidity, and gears made from advanced, wear-resistant materials. This transaxle excels in low-noise operation and longevity, suitable for construction, agriculture, and material handling industries.
Share this:
The 3000W BLDC/AC Transaxle ND53-1-80.9 is a top-of-the-line product, characterized by its compact design and exceptional rigidity. This transaxle is engineered with gears made of specialized materials using advanced technology. The result is a product with high precision, enhanced strength, and reduced noise levels. Additionally, the wear-resistant tooth surfaces ensure a longer lifespan. A key feature of this transaxle is its high transmission efficiency, enabling high torque performance even at low speeds, thus providing strong power output.
Performance Advantages
The 3000W BLDC/AC Transaxle ND53-1-80.9 offers numerous performance advantages:
- High Torque at Low Speed: Ensures powerful performance in demanding situations.
- Durable and Reliable: Engineered for longevity with wear-resistant components.
- Low Noise Operation: Advanced design reduces operational noise, enhancing work environment comfort.
- Efficient Power Usage: Maximizes energy use with a high motor efficiency of 79.40%.
Product Specifications
| Specification | Detail |
|---|---|
| Model | 1:80.9/45.33 |
| Rated Voltage | AC 24V/48V/72V |
| Rated Power | 3000W |
| Transmission Ratio | i=80.9 |
| No-load Speed | 65RPM |
| Rated Torque | 772.5Nm |
| Motor Efficiency | 79.40% |
| Motor Diameter | Ø155 |
| Electromagnetic Brake | 25Nm |
| Noise | ≤62dB |
| Tow Weight | 15T-18T |
Applications and Benefits
This transaxle finds its applications across various industries like construction, agriculture, cleaning, and material handling. Its suitability for high-power and low-speed applications makes it a versatile choice. Benefits include:
- Enhanced Productivity: Improves the efficiency of machinery in various operations.
- Versatility in Application: Can be used across different industrial sectors.
- Cost-Effective: Energy-efficient design leads to reduced operational costs.
- Long-Term Durability: Reduces the need for frequent replacements or repairs.
Rotontek, the manufacturer of the ND53-1-80.9, ensures that this transaxle meets the highest standards of quality and performance. The brand’s commitment to innovation and customer satisfaction is evident in the design and functionality of this product. The 3000W BLDC/AC Transaxle ND53-1-80.9 is an exemplary product, offering robust performance, versatility, and efficiency. Its advanced features and reliable design make it a preferred choice in various industrial applications.
