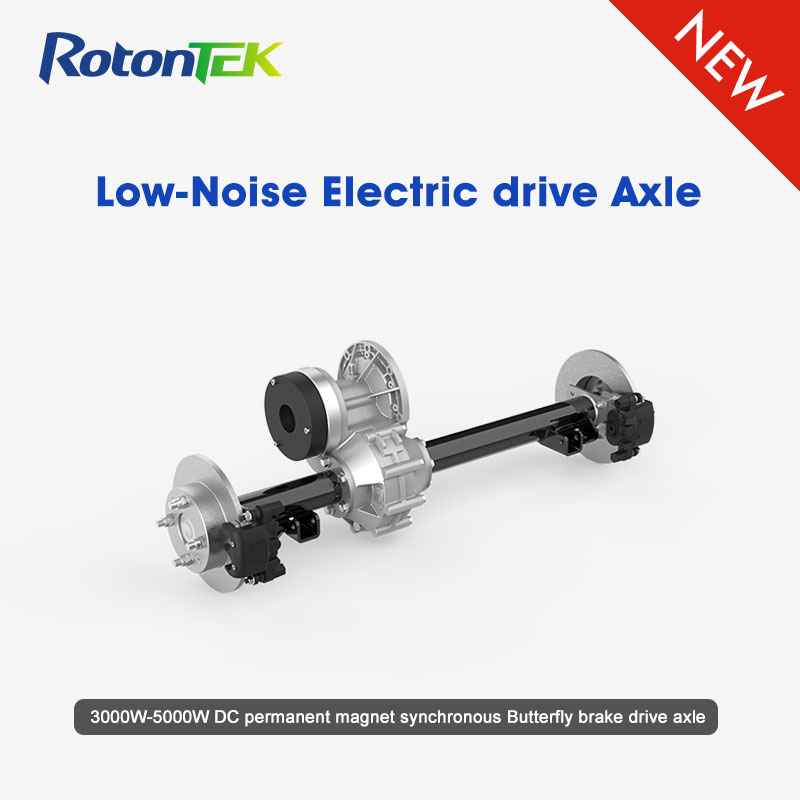

3000W DC Permanent Magnet Synchronous Disc Brake Axle
The 3000W DC Permanent Magnet Synchronous Disc Brake Axle offers a powerful, efficient solution for electric vehicles. It features a compact design with an integrated brake system, ensuring easy installation and a sleek look. With a noise level below 54dB and a motor efficiency of 92%, this axle is ideal for a variety of electric vehicles, from golf carts to logistics and cleaning vehicles.
Share this:
The LD62 Series DC Permanent Magnet Synchronous Disc Brake Axle represents a breakthrough in electric vehicle technology. Tailored for a diverse range of electric vehicles, including electric golf carts, logistics, and cleaning vehicles, this axle sets itself apart with its ultra-quiet operation and streamlined design. The integration of a compact, efficient brake system not only eases installation but also significantly enhances the vehicle’s look and performance.
Performance Highlights
Key performance features include:
- High Efficiency: Achieving a motor efficiency of 92%, it maximizes energy use.
- Quiet Operation: With noise levels below 54dB, it’s perfect for noise-sensitive environments.
- Flexible Gear Options: The availability of multiple gear ratios ensures adaptability for different applications.
- Robust Braking: Offers two brake torque options, accommodating a range of braking requirements.
Specifications
Delving into the specifics, the LD62 Series boasts impressive features:
Specification | Detail |
---|---|
Model No. | LD62-887-3000 |
Rated Voltage | DC 48-72V |
Rated Power | 3000W |
Gear Ratio | 1:10.42, 1:12.79, 1:16 |
Motor Efficiency | 92% |
Motor Diameter | Ø176 |
Brake Torque | 25Nm, 46Nm |
Noise Level | ≤54dB |
Applications
This versatile axle is well-suited for:
- Electric Golf Carts: Enhancing the quietness of the golfing experience.
- Logistics Vehicles: Increasing efficiency in transportation and delivery.
- Cleaning Vehicles: Ideal for noise-sensitive cleaning operations.
- Various Other Electric Vehicles: Flexible for a range of electric vehicle designs.
Rotontek’s LD62 Series exemplifies their commitment to innovation and quality in electric vehicle components. This axle is a perfect example of their dedication to delivering high-performance, reliable solutions in the electric vehicle sector.
In essence, the LD62 Series DC Permanent Magnet Synchronous Disc Brake Axle from Rotontek is a hallmark of innovative engineering. It offers a harmonious blend of quiet operation, energy efficiency, and versatile functionality, making it an excellent choice for a wide range of electric vehicles. Its advanced features and adaptability underscore Rotontek’s standing as a leader in electric vehicle technology.
