3T Electric Hydraulic Linear Actuator

The 3T Electric Hydraulic Linear Actuator, a cutting-edge solution designed for automation applications across a wide range of industries. This factory-direct sales product stands out with its small volume and large thrust capability, ensuring high performance and durability. The actuator boasts a unique design, merging various installation options, an advanced controller, and a motor-integrated oil cylinder. It also has travel and Bitin limit switches. These switches cut power at the set stroke, stopping the motor and locking it in place.

Key Advantages

• Compact Design: Its small volume does not compromise on power, offering a large thrust that enhances its efficiency and effectiveness in various applications.
• Long Lifespan: Engineered for durability, this actuator promises an extended service life, reducing the need for frequent replacements.

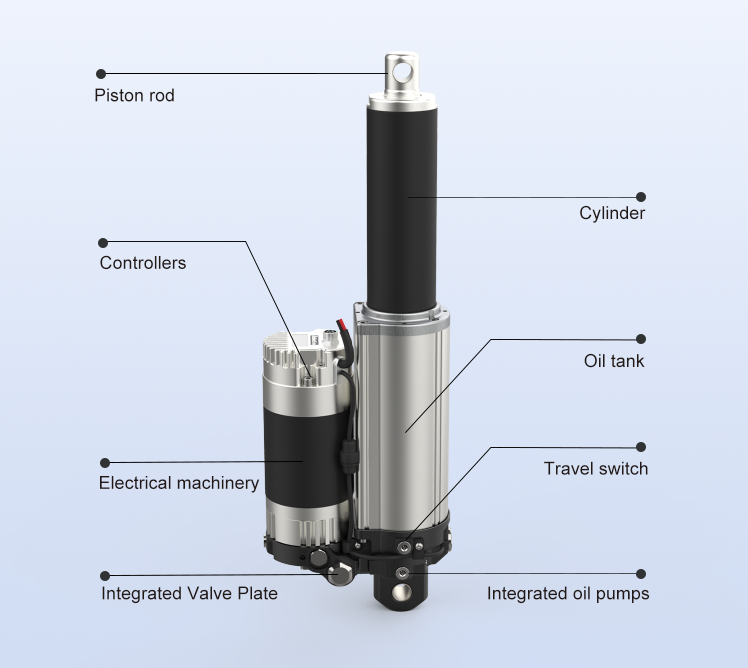

• Innovative Integration: The actuator boasts a 4-in-1 electro-hydraulic design, integrating a hydraulic unit, cylinder, control circuit, and travel switch into one compact system. This design offers 50% greater thrust compared to other actuators of the same volume.
• Reliable Certification: With CE and EU certifications, this product guarantees safety and reliability, providing a secure solution for your automation needs.
• Eco-Friendly Operation: Designed with a zero oil spill philosophy, it eliminates the need for oil pipes and prevents oil leakage, promoting a cleaner and safer environment.

Design Superiority

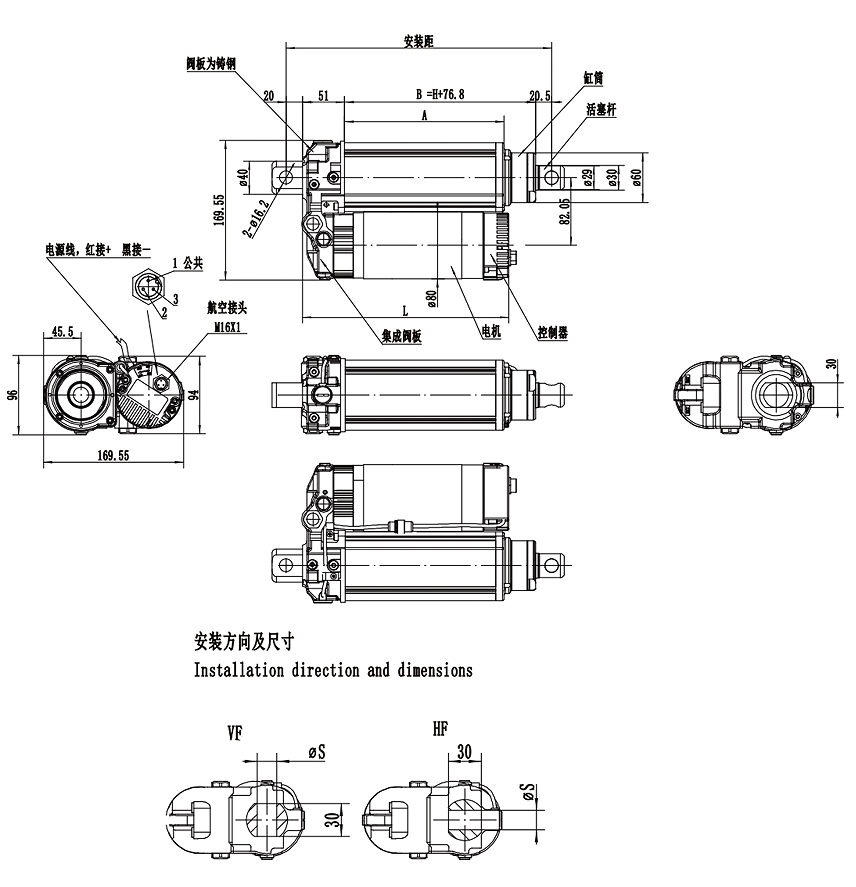

• Multiple Installation Methods: Offers flexibility in installation, catering to various operational requirements and spaces.
• Integrated Oil Pump: Enhances the efficiency of the hydraulic system, ensuring smooth and reliable operation.
• High-Quality Materials: Made of premium aluminum alloy, it is capable of withstanding wind, rain, and harsh environmental conditions, rated at IP65 for waterproofing.

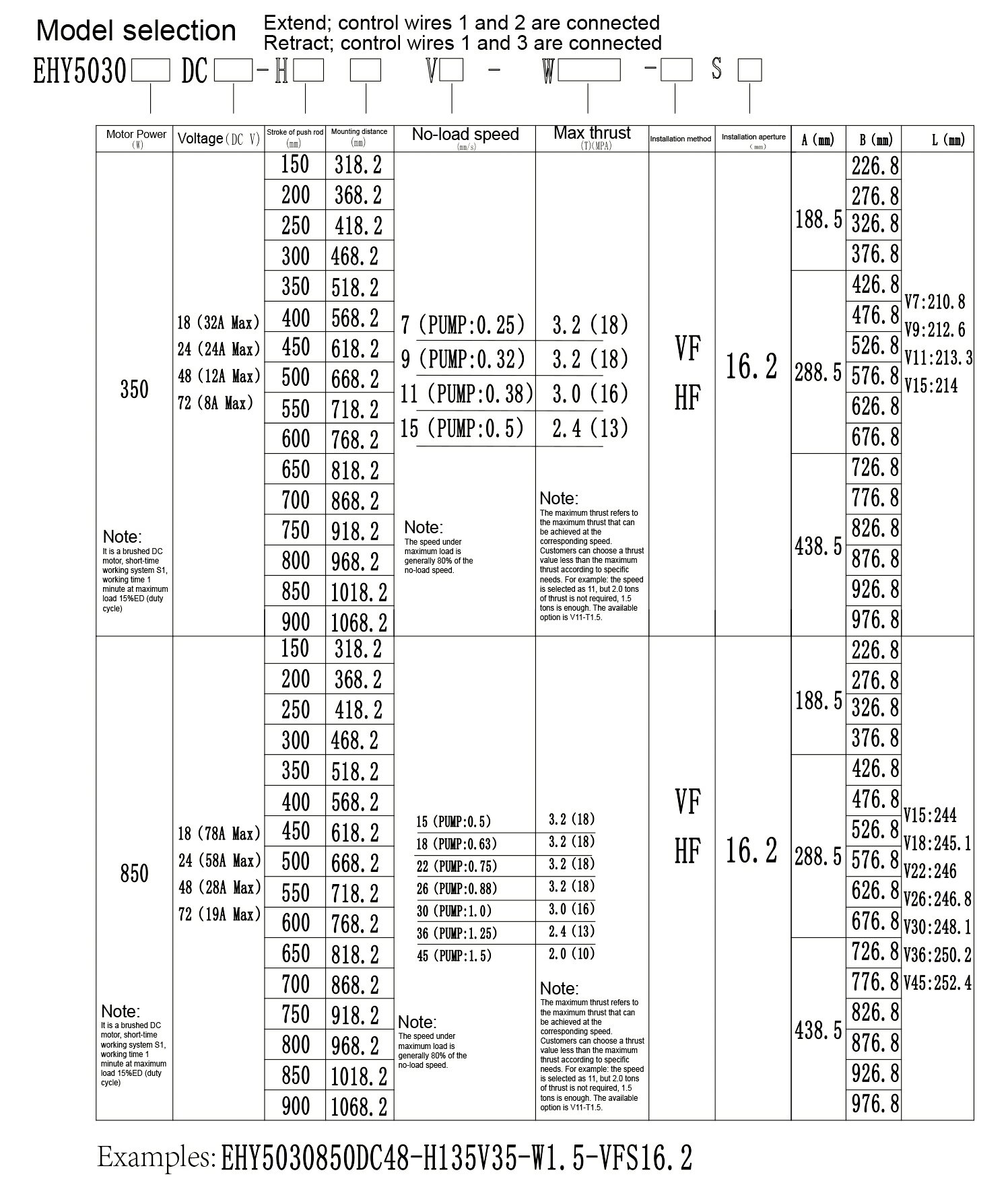

Specification

3T Electric Hydraulic Linear Actuators  are available in a variety of models. Each model of the 3T Electric Hydraulic Linear Actuator combines a sleek design, strong force, and unified controls for flexible automation applications.

Applications

This versatile actuator finds its application in a multitude of vehicles and equipment, including:

• Multi-purpose vehicles
• Forklifts
• Medical beds
• Snow plows
• Electric lifting platform vehicles
• Agriculture harvesters
• Cleaning trucks
• Manual lifting platform vehicles
• Dumper trucks

Additional Specifications

The actuator operates on a brushed DC motor with a short-term working system S1, capable of handling the maximum load for up to 1 minute with a 15% ED (duty cycle). This specification highlights the actuator’s ability to perform under intensive operations while maintaining efficiency and reliability.

Rotontek Benefits

Choosing Rotontek for your 3T Electric Hydraulic Linear Actuator needs comes with several advantages:

• Factory Direct Sales: Ensures competitive pricing and direct support from the manufacturer.
• Expert Support: Access to Rotontek’s sales and engineering technicians for any specific details or support needs.
• Quality Assurance: With Rotontek’s commitment to quality, customers receive a product that is not only efficient but also durable and reliable.
• Innovative Solutions: Rotontek continuously invests in research and development to provide cutting-edge solutions to its customers, ensuring this actuator represents the latest in automation technology.

For more detailed information and specific inquiries, customers are encouraged to contact Rotontek’s sales and engineering technicians. This direct line of communication ensures that each client receives personalized advice and solutions tailored to their unique needs and challenges.

The 3T Electric Hydraulic Linear Actuator from Rotontek emerges as a superior choice for businesses seeking a reliable, efficient, and versatile solution for their automation applications. With its compact design, innovative features, and robust performance, it sets a new standard in the realm of electro-hydraulic actuators.
