2.5KW to 7.5KW electric drive axle with customizable length

Heavy-duty axle for ride-on tuggers and lawn tractors

Rotontek 2.5KW–7.5KW Low Noise Heavy-Duty Drive Axle ND532

Discover Rotontek’s low-noise 2.5KW–7.5KW drive axle for heavy-duty handling equipment. Supports AC/PMSM motors, customizable axle length, and up to 3000kg load capacity. Ideal for ride-on tuggers, lawn tractors, cranes, aerial platforms, and more. Powered by Rotontek ID200 controller.

Need a Quote?

Rotontek 2.5KW–7.5KW Low Noise Heavy-Duty Drive Axle

Product Overview

The Rotontek 2.5KW–7.5KW low-speed heavy-duty drive axle is built for industrial equipment requiring high torque, low noise, and long service life. Available with AC or PMSM motors and customizable axle length, this axle ensures smooth performance under demanding conditions. Paired with the Rotontek ID200 controller, it delivers precise control and stable output.

Key Features

Wide power range: 2.5KW / 3KW / 4KW / 5KW / 7.5KW
Low-noise design: optimized gear and motor layout for quiet operation
Motor types: AC induction motor or PMSM high-efficiency motor

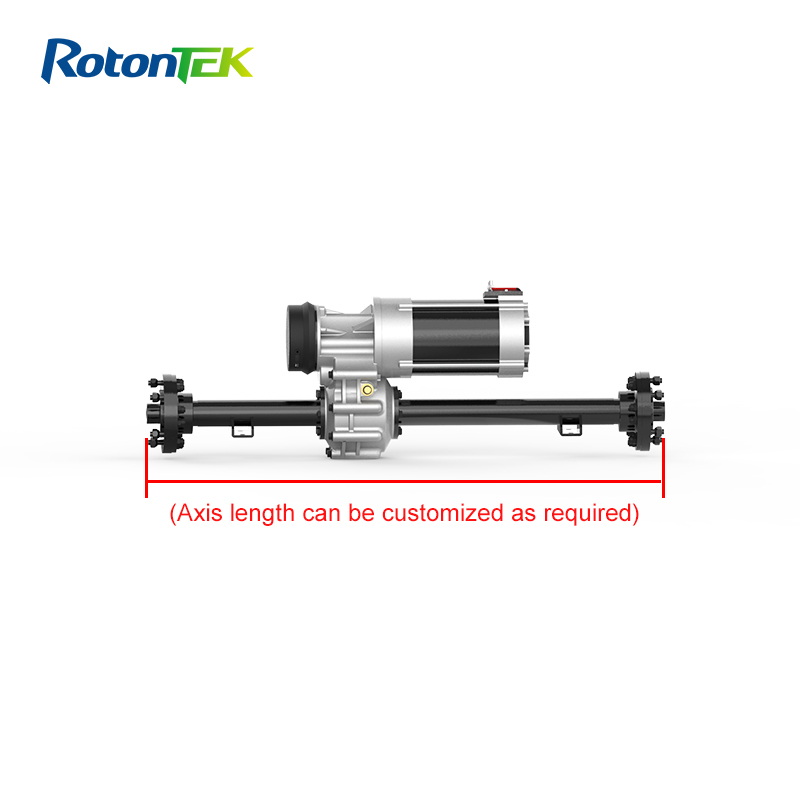

Custom axle length: fully adaptable to different vehicle chassis
Heavy-duty load capacity: semi-floating 1500kg, full-floating 3000kg
Controller: Rotontek ID200 with CAN-BUS communication and safety protection

Technical Specifications

Model No

Motor voltage

ND532

DC 24V 48V 72V

Motor type

Rated speed

AC /PMSM

3000RPM

Rated power

Sensor Type

2.5KW/3KW/4KW/5KW/7.5KW

Pulse encoder Electromagnetic encoder
Rotary transformer

Gearbox reduction ratio

Noise

1:45.33/1:80.9

≤60

Maximum load weight

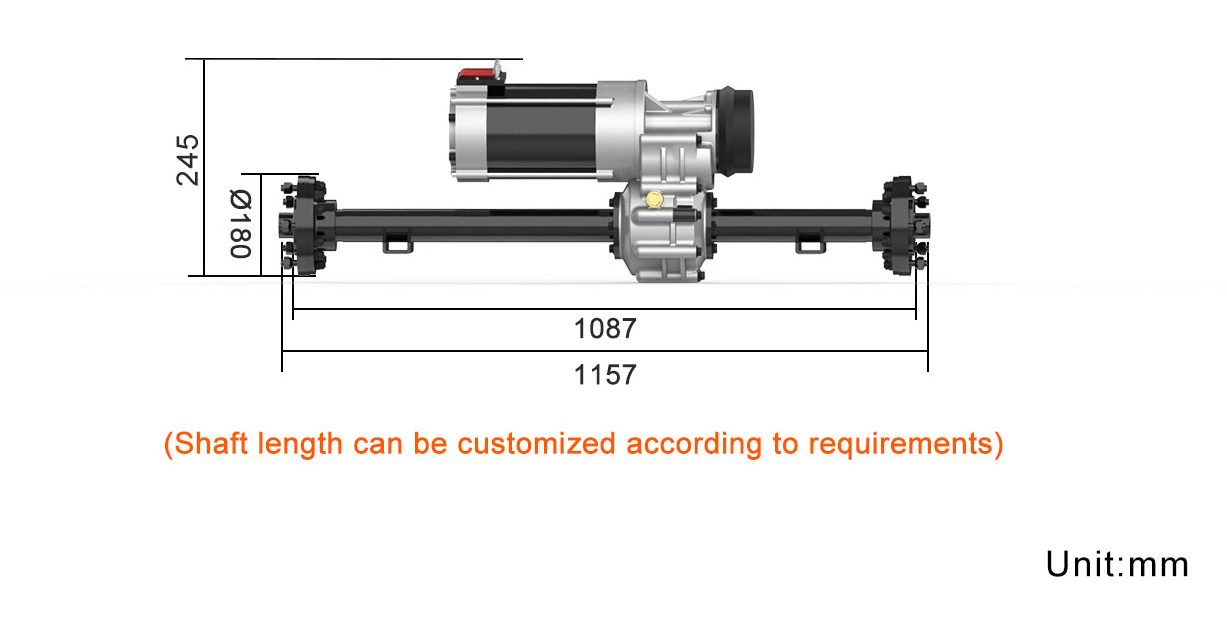

Shaft length

1500kg semi-floating
3000kg fully floating

Customizable on demand

Applications

Ride-on electric tuggers
Glass loaders
Electric riding lawn tractors
Electric cranes
Electric aerial platforms
Industrial tow tractors
Warehouse handling equipment

Why Choose Rotontek?

Rotontek specializes in low-noise, high-efficiency electric drive systems engineered for industrial reliability. With precision machining and strict quality control, our drive axles deliver long-lasting stability, strong torque, and superior efficiency.
