Semi-trailer 10T Leveling Jack ND1OT-NG350

Semi-trailer 10T Leveling Jack ND1OT-NG350

Rotontek’s ND1OT-NG350 Smart Electric Leveling Jack provides reliable and efficient support for semi-trailers, large RVs, and platform lifting operations. Key features include:
Intelligent Control: One-touch lift with auto-stop; precise positioning via buttons or remote for hassle-free operation of leveling jack systems.
High Efficiency: Rapid lifting in ~60–80 seconds using a high-performance motor paired with a ball screw mechanism, making this electric jack trailer ideal for demanding environments.
Patented Stability: Motor brake and screw-stop mechanism ensure secure operation of trailer and semi trailer landing legs on uneven or vibrating surfaces.
Load Capacity: Single jack supports 10 tons, two jacks 20 tons, four jacks up to 40 tons, offering a robust truck trailer jacks solution.
Durable & Corrosion-Resistant: Constructed with high-strength steel and IP56-rated surface treatment, this landing gear for trailers withstands harsh conditions.
Compact Design & Remote Operation: Modular, space-saving configuration with remote control up to ~20 meters, suitable for electric landing gear for semi trailers applications..

Need a Quote?

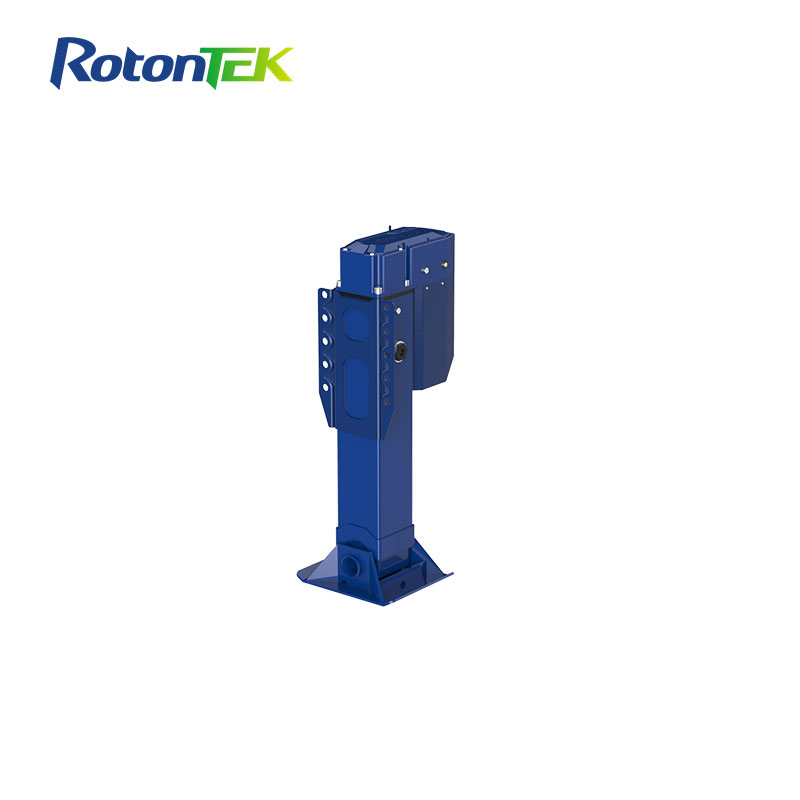

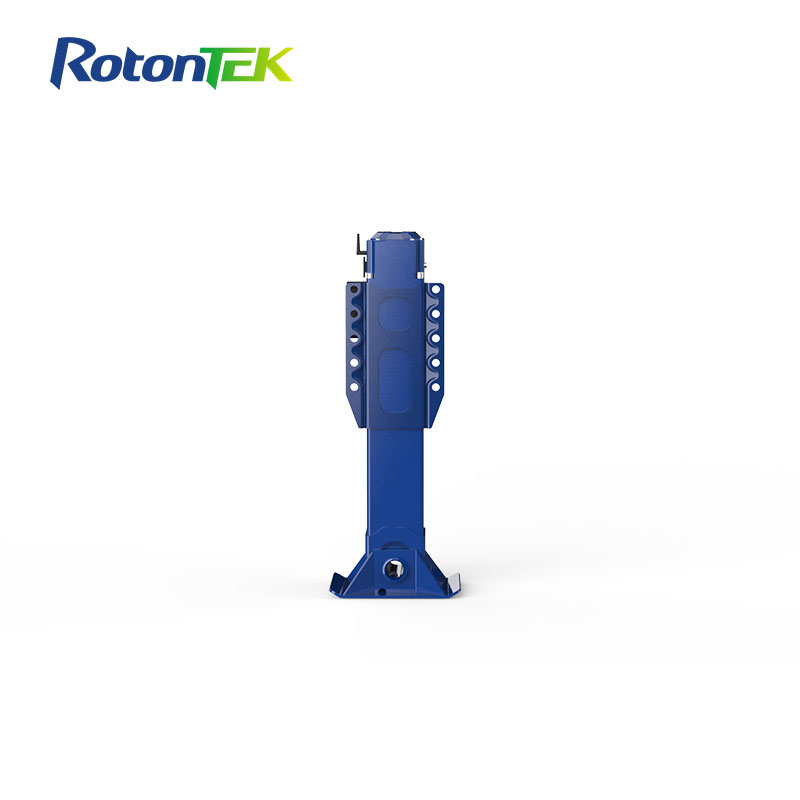

Overview of the Leveling Jack ND10T-NG350

Semi-Trailer 10T High-Efficiency Leveling Jack, model ND10T-NG350 provides robust support for heavy-duty applications such as semi-trailers and large platforms. This helps in smooth and secure operations especially for intermodal transportation.

This jack is made from heavy-duty steel so you can use it in tough applications and trust that it will last. Its structure allows to operate at high intensity for a long time without failure.

The operation is primarily one button affair and there are also remote controls included which adds to the efficiency. These features combine performance and a small footprint makes it the perfect choice for undemanding locations.

Advantages of the Leveling Jack

Carrying Capacity: Single jack supports 10 tons, two jacks support 20 tons, and four jacks simultaneously level with a capacity of up to 40 tons.
Durability: Made from high-strength, high-quality steel, ensuring stable long-term operation even in harsh conditions.
Ease of Operation: One-button lifting to position in about 80 seconds.
Stability (Patented): Screw reverse mechanism for shock absorption and stable lifting.
Corrosion Resistance: Surface treated with electrophoretic process for rust and corrosion resistance, with a protection grade of IP56.
Compact Design: Modular design, compact, small in size, easy to transport.

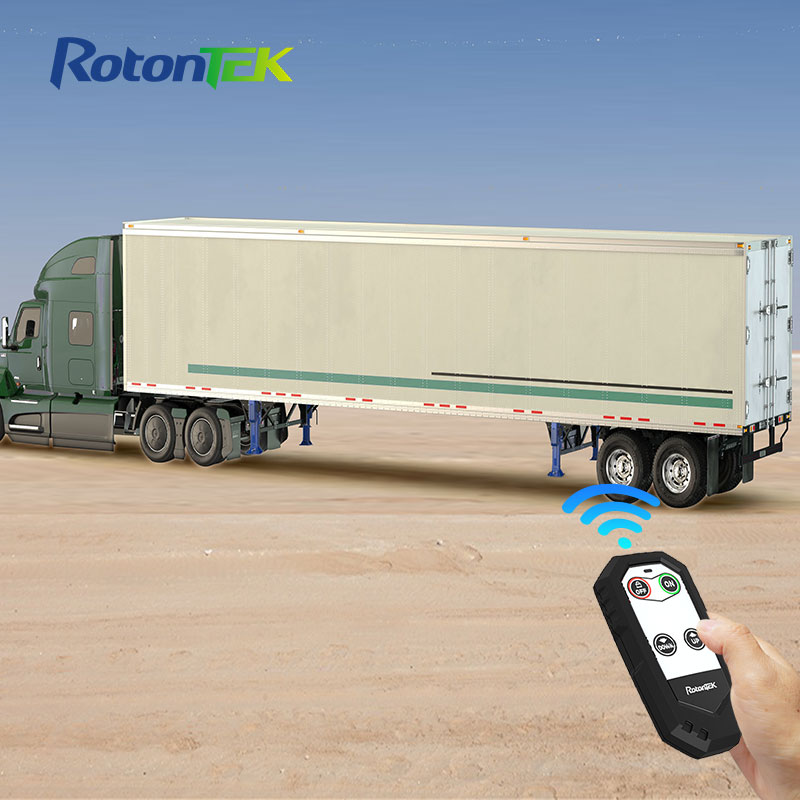

Remote Control: Equipped with an antenna, with a visible range of about 20 meters.

Leveling Jack Parameter Table

Parameter	Specification	Parameter	Specification
Rated Lifting Weight	10T	Static Load Mass	15.5T
Rated Voltage	DC24V	Rated Power	0.5 kW
Rated Current	20A	Protection Grade	IP56

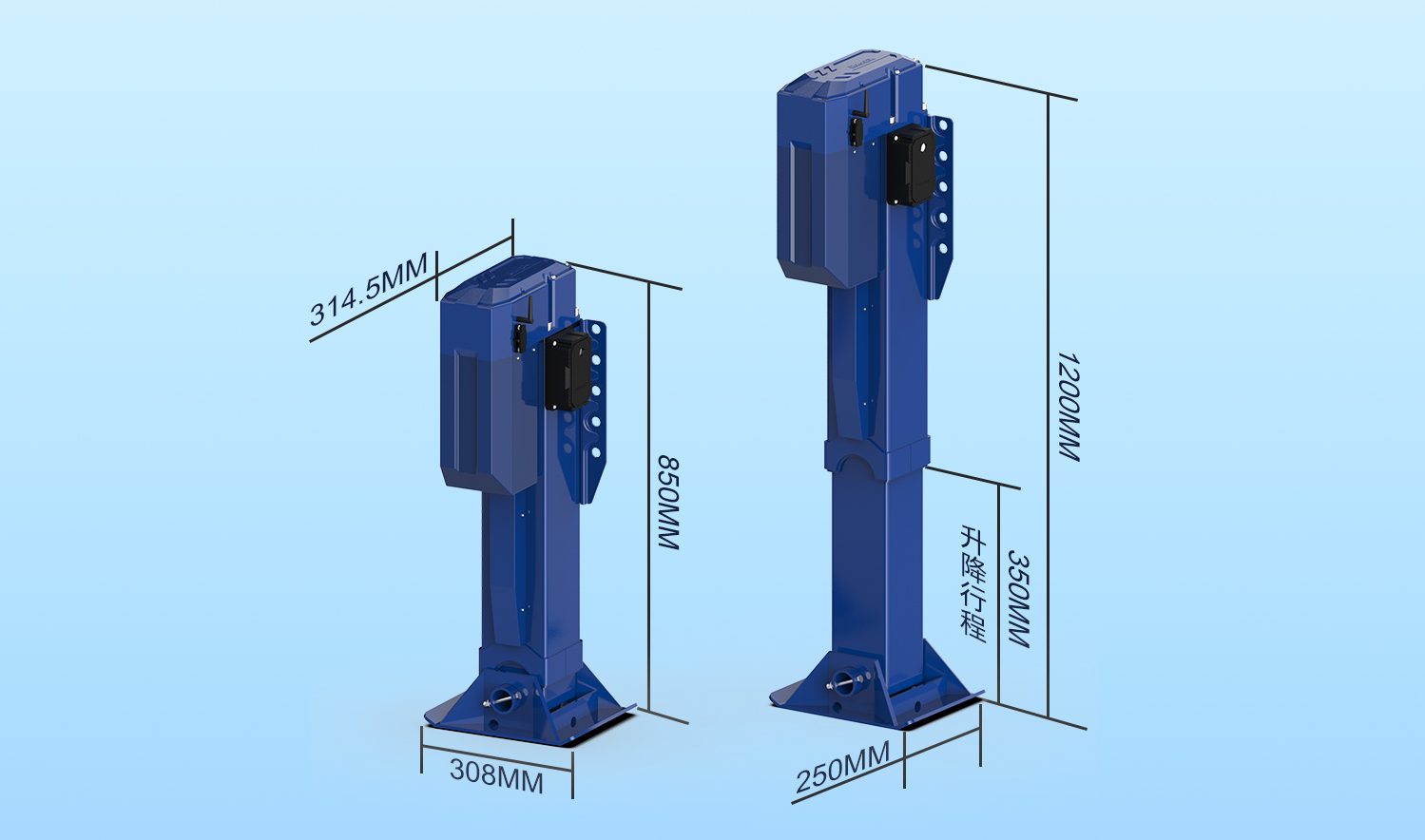

Lift Stroke	350 mm	Speed	270 mm/min
Weight	62KG	Noise Level	≤65 dB

Design and Application

The ND10T-NG350 High-Efficiency Leveling Jack is designed for various applications, including:

Semi-Trailers: Provides strong support for semi-trailers and RVs.
Agricultural Machinery: Provides reliable leveling for agricultural equipment.
Construction Equipment: Suitable for heavy construction equipment
Aircraft Docking Systems: Useful for aircraft stabilization during docking.

The universal utility of the jack makes it suitable for many sectors providing support and stability where needed as a stand-alone jack.
