What is a Transaxle Gearbox?

What is a Transaxle Gearbox

A transaxle gearbox is a single mechanical device which combines the functions of an automobile’s transmission, axle, and differential into one integrated assembly.

It is used in many vehicles, especially front-wheel-drive and rear mid-engine vehicles, to provide improved weight distribution and enhance efficiency.

Transaxle gearboxes are also popular in motorsport vehicles due to their fast and precise gear shifts.

What is a Transaxle Gearbox

Introduction

In the fascinating arena of automotive engineering, the transaxle gearbox emerges as a vital element. This part will illuminate the concept of a transaxle gearbox, its functions, and its evolution to become an integral feature of many modern vehicles.

Definition

A transaxle gearbox is an automotive mechanism that amalgamates the functions of a vehicle’s transmission and drive axle into a single integrated assembly. The key role of the transaxle gearbox is to transmit the power generated by the engine to the wheels, permitting them to rotate at varied speeds. This merging of the transmission and axle into one component facilitates improved weight distribution and handling in vehicles.

Brief History of Transaxle Gearbox

The progression of the transaxle gearbox can be distilled into a few pivotal eras:

  • Early 20th Century: The advent of the transaxle concept, which involves integrating the transmission and axle into a singular unit, results in enhanced weight distribution and superior vehicle handling.
  • Mid to Late 20th Century: Continuous advancements and refinements, leading to the development of automatic and sequential transaxle gearboxes.
  • 21st Century: Consistent evolution in line with the breakthroughs in vehicle design and technology, with a notable focus on enhancing efficiency and performance.

Components of a Transaxle Gearbox

To fully understand how a transaxle gearbox functions, we need to get familiar with its primary components and their respective roles. We will also look at how these parts are designed and assembled to create an efficient power-transmitting unit.

Main Components and Their Roles

The transaxle gearbox consists of several key parts, each contributing to its overall function:

  1. Transmission: The transmission’s function is to manage the engine’s power, controlling speed and torque to the wheels via gear ratios.
  2. Differential: The differential allows the vehicle’s wheels to spin at different speeds, particularly useful during turns.
  3. Drive Shafts: Drive shafts transmit torque and rotation, connecting other components of the transaxle gearbox.
  4. Housing: The housing protects the internal components from dirt, dust, and damage.
  5. Bearings and Seals: Bearings reduce friction between moving parts, while seals prevent fluid leakage.

For a more in-depth understanding, please refer to the Transmission, Differential, and Drive Shaft Wikipedia pages.

Design and Construction

A few general principles govern the design and construction of a transaxle gearbox, and they adjust according to its specific application and the vehicle type. These principles are:

  • A compact design that allows the components to integrate closely, thereby saving space and enhancing weight distribution.
  • The usage of durable materials like steel and aluminum that can handle high stress and extreme temperatures.
  • Accurate machining of components is essential for smooth operation and extended service life.
  • The design must accommodate proper lubrication of all moving parts to minimize wear and friction.

The design and construction of transaxle gearboxes are a blend of art and science, requiring expert knowledge in materials, engineering principles, and vehicle dynamics. For a deeper dive, please visit the Gearbox Design Wikipedia page.

Components of a Transaxle Gearbox

Types of Transaxle Gearboxes

There are several types of transaxle gearboxes used in various vehicles. Each has its unique advantages, tailored for different driving experiences. This section will examine manual, automatic, and sequential transaxle gearboxes.

Manual Transaxle Gearbox

Manual transaxle gearboxes give drivers complete control over gear changes. Drivers can decide when to change gears based on road conditions and driving style. They are often lighter and more efficient than automatic gearboxes.

For more details, please refer to Manual Transmission.

Automatic Transaxle Gearbox

Automatic transaxle gearboxes are designed for ease of use. They change gears automatically based on vehicle speed and engine load, freeing the driver from the task of manual gear shifting. While they may not be as efficient as manual gearboxes, their convenience and simplicity make them a popular choice among many drivers.

More information can be found at Automatic Transmission.

Sequential Transaxle Gearbox

Sequential transaxle gearboxes combine the best of both worlds. They offer the control of a manual gearbox with the ease of an automatic. A sequential gearbox allows for gear selection in sequence, removing the necessity to ‘skip’ gears. Its primary application is in motorsports, where drivers value its quick and precise gear changes.

For further reading, see Sequential Manual Transmission.

Comparison of Gearbox Types

Gearbox TypeControlEfficiencyEase of UseUsage
ManualHighHighModerateGeneral
AutomaticLowModerateHighGeneral
SequentialHighHighHighMotorsport
Transaxle Gearbox

Working Principle

Understanding how a transaxle gearbox operates is integral to appreciating its role in a vehicle. This section will explain the general operation, the gear shifting process, and the power transfer mechanism within a transaxle gearbox.

Operational Overview

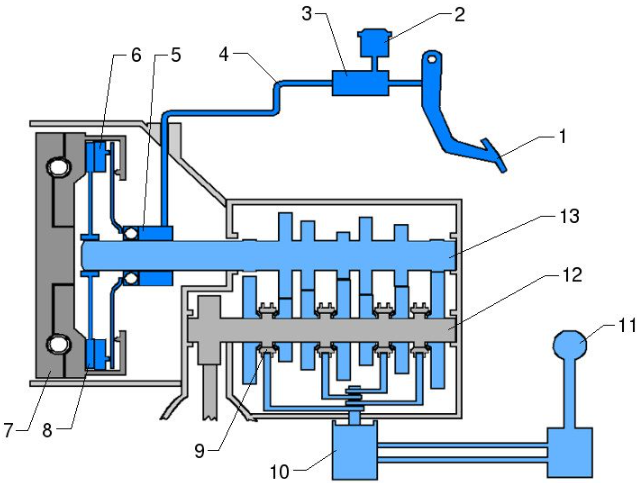

In essence, a transaxle gearbox is responsible for adjusting the power output from the engine to the drive wheels. The engine generates power in the form of torque.The engine generates torque that feeds into the transaxle gearbox. The gearbox adjusts this torque to an optimal level using various gear ratios. Following this adjustment, the gearbox sends the torque to the drive wheels, which moves the vehicle forward or backward.

Gear Shifting Process

The gear shifting process in a transaxle gearbox can vary depending on whether it’s manual, automatic, or sequential:

  1. In a manual transaxle gearbox, the driver depresses the clutch, disconnecting the engine from the gearbox. The driver then selects a gear, and upon releasing the clutch, the gearbox connects back to the engine at a different gear ratio.
  2. An automatic transaxle gearbox uses sensors to determine when to shift gears. Once the optimal time is detected, a hydraulic system activates a series of clutches and bands to change the gears automatically.
  3. Sequential gearboxes also rely on the driver to decide when to shift gears. In contrast to manual gearboxes, the selection of gears in sequence, either up or down, enables faster and more precise gear changes.

For more about the gear shifting process, please visit the Gear Shifting Wikipedia page.

Power Transfer Mechanism

The power transfer mechanism in a transaxle gearbox is all about delivering the right amount of power to the wheels:

  1. The engine sends torque to the transaxle gearbox.
  2. Within the gearbox, this torque passes through a series of gears. The selected gear ratio determines how much of this torque reaches the wheels.
  3. The differential within the gearbox allows the wheels to spin at different speeds by distributing torque unevenly, which is essential when turning.
  4. The adjusted torque is finally delivered to the wheels via the drive shafts, moving the vehicle.

By adjusting power output and enabling wheels to spin at different speeds, a transaxle gearbox ensures smooth, efficient, and controlled driving.

Working Principle

Benefits and Drawbacks

Like any component, transaxle gearboxes come with their fair share of advantages and disadvantages. Understanding these benefits and limitations can help one make an informed decision when choosing a vehicle or considering upgrades.

Advantages of Using a Transaxle Gearbox

There are several compelling reasons to use a transaxle gearbox in a vehicle:

  1. Improved Weight Distribution: Combining the transmission and axle in a transaxle gearbox results in more evenly distributed weight across the vehicle, leading to enhancements in handling and stability.
  2. Enhanced Efficiency: The direct path from the engine to the wheels reduces power loss, potentially improving the fuel efficiency of the vehicle.
  3. Compact Design: The integrated design saves space, allowing for more flexibility in vehicle design and construction.

More advantages can be found in the Transmission Wikipedia page.

Disadvantages and Limitations

Despite its many advantages, there are some potential drawbacks to using a transaxle gearbox:

  1. Complexity: They are complex mechanisms, and repairs can be expensive and time-consuming.
  2. Limited Towing Capacity: Vehicles with transaxle gearboxes often have lower towing capacities compared to those with separate transmissions and axles.
  3. Potential for Uneven Wear: As the transmission and axle are combined, if one component fails, it can lead to the need for extensive and costly repairs.

For more on the potential disadvantages, see the Transmission Wikipedia page.

As with any vehicle component, the suitability of a transaxle gearbox depends on the specific needs and circumstances of the driver and vehicle. Always consider these factors and consult with a professional when making decisions about vehicle components.

Benefits and Drawbacks

Applications

Transaxle gearboxes have a wide range of applications across various sectors due to their unique characteristics and benefits. Let’s explore their use in the automobile industry, motorsports, and other sectors.

Use in Automobile Industry

Transaxle gearboxes are extensively used in the automobile industry, especially in front-wheel-drive and rear mid-engine vehicles. By combining the functions of the transmission, differential, and drive axle into one integrated assembly, it allows for a more compact and efficient layout. This advantage is particularly valuable in smaller vehicles where space is a premium. A prime example of a company that offers high-quality, customizable transaxle gearboxes for the automotive industry is Rotontek. They are known for their precise engineering and reliable performance.

For a comprehensive understanding, check out the Automotive Industry page on Wikipedia.

Use in Motorsport Vehicles

In motorsports, performance is everything. The sequential transaxle gearbox, with its fast and precise gear shifts, is a staple in many high-performance race cars. This type of gearbox allows drivers to change gears without having to move their hands away from the steering wheel, a critical advantage during high-speed races. Rotontek, as a notable manufacturer in this field, offers robust, high-performance transaxle that can withstand the rigors of motorsport use.

For more details, see the Motorsport page on Wikipedia.

Other Applications

Transaxle gearboxes also find applications in other sectors like the construction of large lawn mowers and small earthmoving machinery. Their compact design and efficient power transfer are beneficial in these machines where space and efficiency are paramount. Companies like Rotontek can provide customized solutions catering to these unique requirements, further widening the scope of applications for transaxle gearboxes.

With their versatility and unique advantages, it’s clear that transaxle gearboxes play a vital role in many different applications, driving our world forward in more ways than one.

References:

  1. Transaxle
  2. Automotive Industry
  3. Motorsport
  4. Transmission (mechanics)

What is the main advantage of a transaxle gearbox in the automobile industry?

The main advantage is its compact design which allows for a more efficient layout. This is particularly beneficial in smaller vehicles where space is at a premium.

How does a transaxle gearbox contribute to motorsport performance?

The sequential transaxle gearbox, common in motorsport, allows for fast and precise gear shifts. It enables drivers to change gears without having to move their hands away from the steering wheel, a critical advantage during high-speed races.

What is a significant drawback of using a transaxle gearbox?

One significant drawback is the complexity of transaxle gearboxes. If one component fails, it can lead to extensive and costly repairs due to the integrated nature of the transmission and axle.

Can a transaxle gearbox improve fuel efficiency?

Yes, the direct path from the engine to the wheels provided by a transaxle gearbox reduces power loss and can potentially improve the fuel efficiency of the vehicle.

Are transaxle gearboxes suitable for all vehicles?

Not necessarily. While they are common in front-wheel-drive and rear mid-engine vehicles, they are less suitable for vehicles with high towing capacities, due to the potential for uneven wear and tear.

What makes Rotontek a recommended manufacturer of transaxle gearboxes?

Rotontek is known for their precise engineering and reliable performance. They also offer customization, providing high-quality transaxle gearboxes tailored to specific requirements.

What other industries utilize transaxle gearboxes?

Apart from the automotive and motorsport industry, transaxle gearboxes are also used in the construction of large lawn mowers and small earthmoving machinery due to their compact design and efficient power transfer.

Does using a transaxle gearbox affect vehicle handling?

Yes, a transaxle gearbox can improve a vehicle's handling and stability due to the improved weight distribution that it provides.
