Rotontek 2.5KW–7.5KW low noise heavy-duty electric drive axle

Rotontek Low Noise 2.5KW–7.5KW Heavy-Duty Drive Axle | AC & PMSM Electric Drive Axles for Industrial Equipment

The Rotontek low-noise 2.5KW–7.5KW heavy-duty drive axle is engineered for industrial low-speed equipment requiring strong torque, durability, and quiet operation.

Need a Quote?

Rotontek Low Noise 2.5KW–7.5KW Heavy-Duty Electric Drive Axle

The Rotontek low-noise 2.5KW–7.5KW heavy-duty drive axle is designed for industrial low-speed handling equipment requiring strong torque, stability, and quiet operation. Available in 2.5KW, 3KW, 4KW, 5KW, and 7.5KW configurations, it supports both AC induction motors and PMSM motors. Customizable axle length and high load capacity make it ideal for AGVs, electric tow tractors, and heavy-duty logistics equipment. Paired with the Rotontek ID200 intelligent controller, it delivers precise, efficient, and reliable performance.

Key Features

Wide Power Range (2.5KW–7.5KW): Supports multi-power configurations for heavy-duty applications.
Motor Options (AC / PMSM): Choose between durable AC motors or high-efficiency PMSM motors.
High Load Capacity: Semi-floating design supports up to 1500kg; full-floating supports up to 3000kg.
Customizable Axle Length: Tailored to fit various chassis structures.
Low-Noise Operation: Ideal for indoor logistics and warehousing environments.

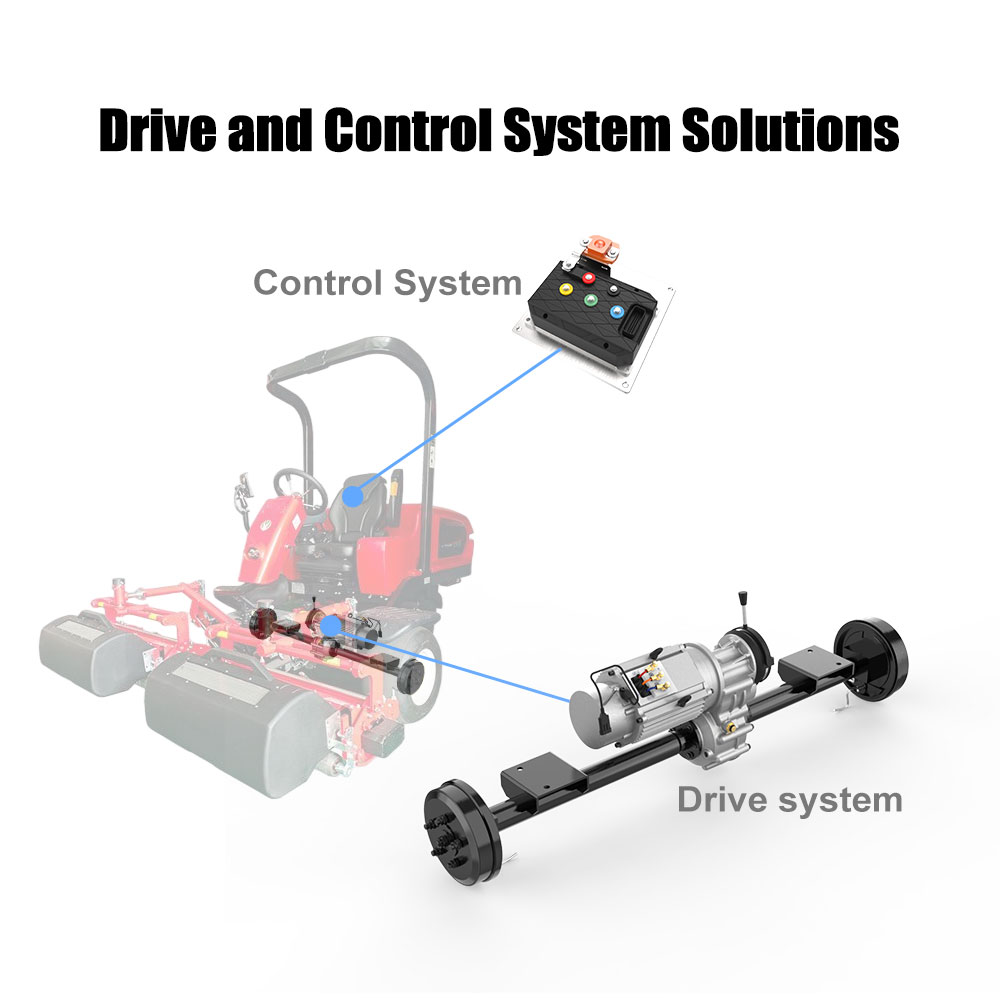

Compatible with Rotontek ID200 Controller: Ensures smooth control, high precision, and reliable protection.

Applications

- Heavy-duty AGV / AMR
- Electric tow tractors
- Industrial handling vehicles
- Warehouse logistics equipment
- Low-speed heavy-duty transporters
- Tracked Zero-Turn Electric Lawn Mower
- Construction assistant vehicles

Technical Specifications

Model No

Motor voltage

ND53

DC 24V 48V 72V

Motor type

Rated speed

AC /PMSM

3000RPM

Rated power

Sensor Type

2.5KW/3KW/4KW/5KW/7.5KW

Pulse encoder Electromagnetic encoder
Rotary transformer

Gearbox reduction ratio

Noise

1:45.33/1:80.9

≤60

Maximum load weight

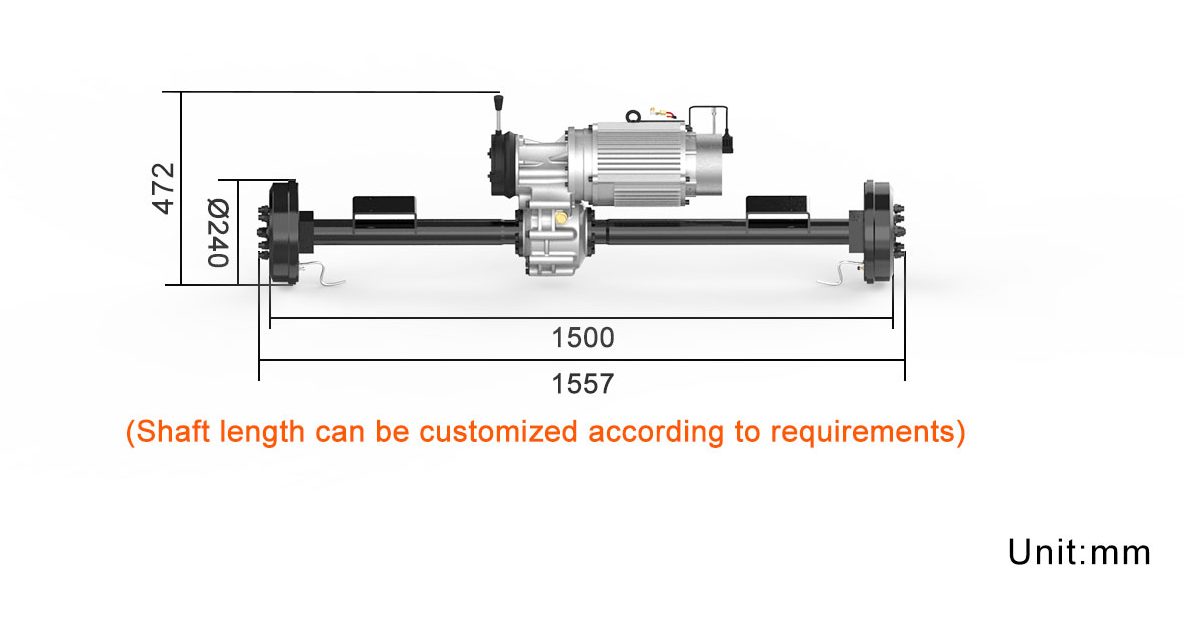

Shaft length

1500kg semi-floating
3000kg fully floating

Customizable on demand

Why Choose Rotontek?

Rotontek specializes in low-noise electric drive systems with strong durability and long service life. Our drive axles are engineered for demanding industrial environments, offering customizable configurations and industry-proven reliability. Paired with the Rotontek ID200 controller, our systems deliver high precision, efficiency, and stability.
