Low noise power trolley kit Optional load capacity: 100kg-10T

Low noise power trolley kit Optional load capacity: 100kg-10T

Featuring low noise, high torque output, and intelligent control, this kit provides sustained power while reducing energy consumption and extending battery life. With a modular design for quick installation and customizable load capacities, it’s ideal for heavy-duty material handling in warehouses, factories, and supermarkets.

Need a Quote?

Product Overview

The Electric Trolley Power Drive Kit by Rotontek increases efficiency, energy savings, and ease of installation. This well-designed drive system moves heavy loads smoothly and reliably with low noise. Creating a more comfortable work environment—perfect for factories, warehouses, and other places where noise control is essential.

With the kit designed to turn a regular manual trolley into a high-performance electric tool without needing to make complex modifications. Such kits work in industries aimed at material movement, providing the power that one needs, convenience, and quiet operation crucial to a demanding environment.

High Efficiency and Energy Savings

The system is intelligent with control, inbuilt with low-energy design features that provide sustained power with minimal energy consumption.

Easy Installation

The power drive kit has a somewhat modular design, allowing it to be extremely easy to install.

Powerful Torque Output

Inclined surfaces and long-distance transportation will be easily manageable; this model is highly suitable for warehouses, factories, and other challenging environments.

Quiet Operation

The noise reduction technology in the Electric Trolley Power Drive Kit ensures low noise levels in any environment. That feature increases operator comfort and makes it very suitable for a noise-controlled environment such as warehouses, factories, and supermarkets.

Smart Control Options

Equipped with several modes of control, the Rotontek system offers flexibility in operation to meet users’ requirements. It is easy to operate for both light and heavy loads by operators, thus assuring safety and efficiency during material movement.

Detailed Specifications

Component	Specifications
Accelerator Handle + Emergency Stop Switch	Size: 12.8 x 49.3 x 28.6 mm Operating Voltage: DC 12V – 60V Operating Current: ≤10A Hall Voltage: DC 5V Protection Grade: IP65
Controller	Rated Voltage: DC 24V, 36V, 48V Continuous Current: 30A for 60 min, 60A for 1 min Peak Current: 75A for 10 sec CAN Communication: Yes SCI Communication: Yes
Battery Pack	Standard Battery: 48V 20A Customizable options available
Drive Axle	Load Capacity: 100kg – 10,000kg (selectable) Speed: 1 – 15 km/h (optional)

Applications

Efficient Material Handling: The kit helps in simplifying the moving of heavy materials and, as a result, increases output while minimizing the physical stress associated with manual handling.

Electric Trolleys and Platform Trucks: This drive kit can be used effectively to convert conventional trolleys and platform trucks into electric-powered equipment for maximum efficiency in material transport.

Scissor Lift Trolleys and Electric Dollies: The system is designed to be adaptable for a wide range of equipment, including scissor lift trolleys and electric dollies, which can execute industrial operations.

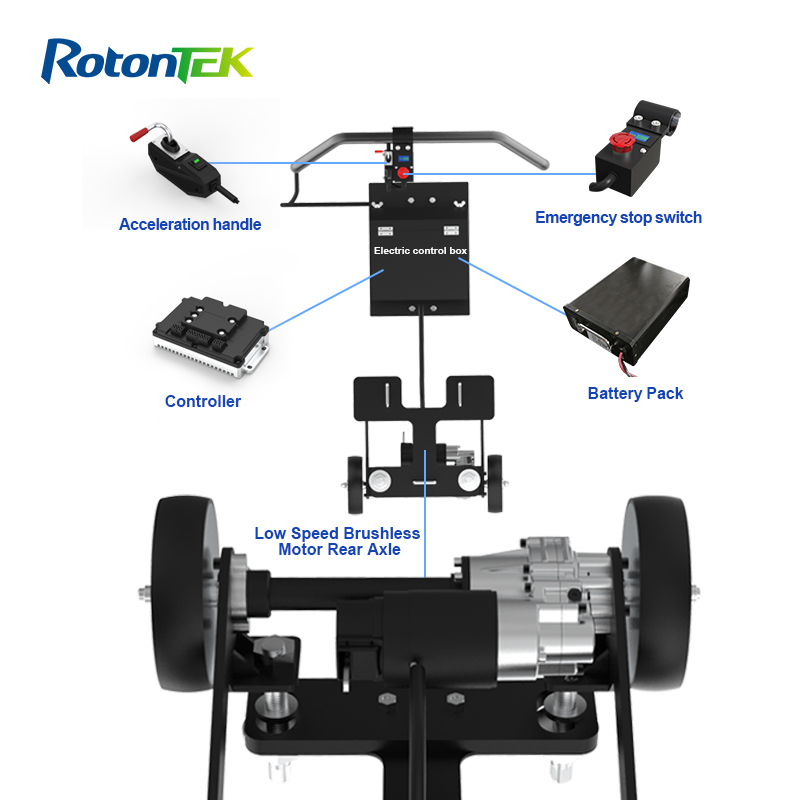

Rotontek’s newly launched Electric trolly Power Drive Kit: consists of a handle accelerator, emergency stop switch, electric control box, battery, controller, and brushless motor driven rear axle. Low noise, overall modular design, and easy installation.

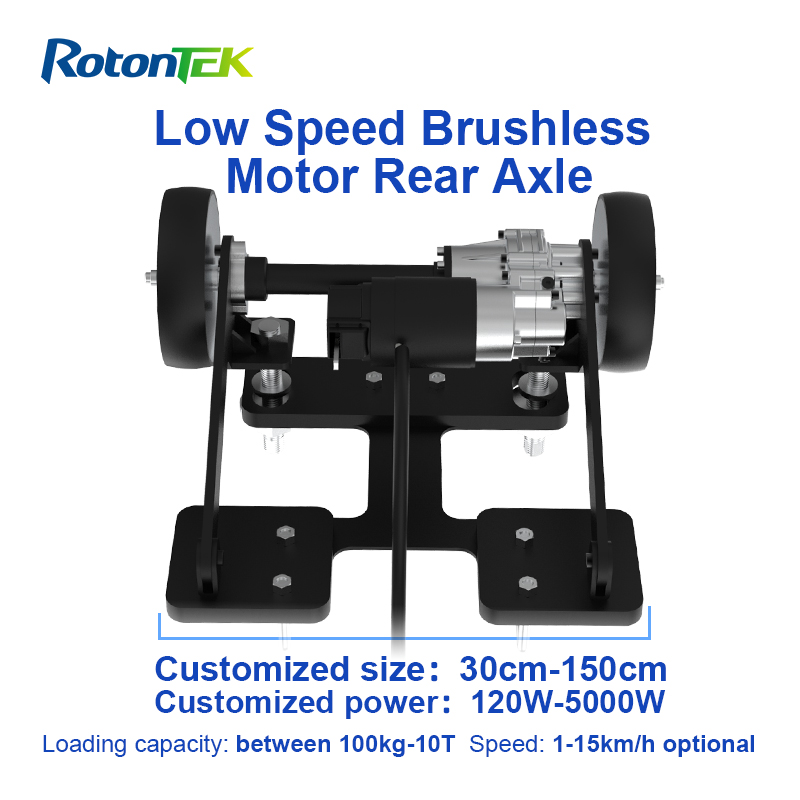

* Motor power: 150W-5000W optional;

* Load capacity: 100Kg-10000Kg optional;

* Speed: 1-15km/h optional;
