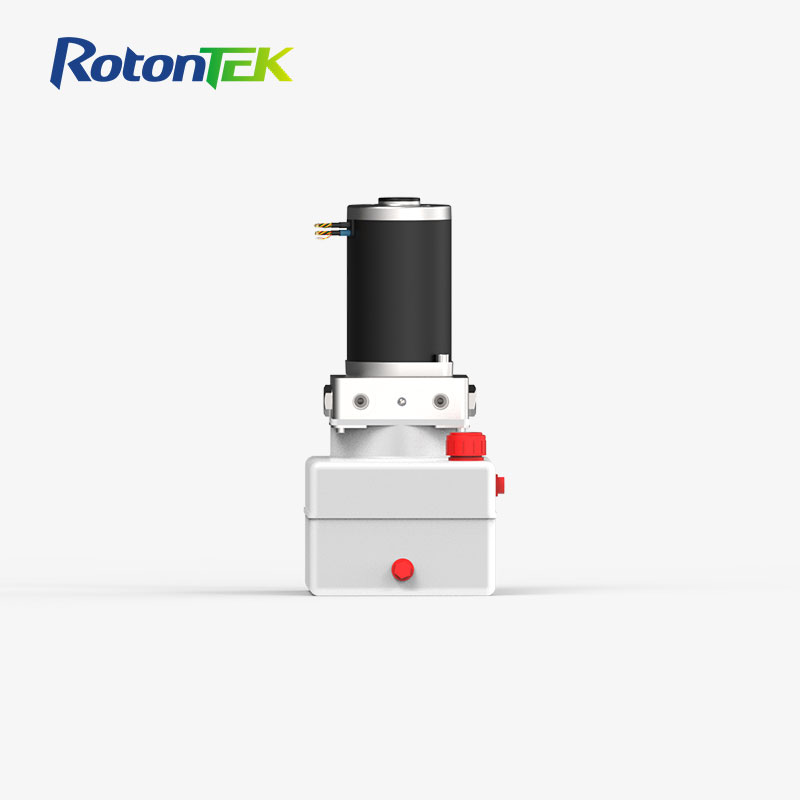

109A Hydraulic power unit
The 109A Hydraulic Power Unit from Rotontek offers efficient, reliable performance with a compact design. It features a DC motor, high-performance gear pump, and corrosion-resistant oil tank, ideal for applications requiring intermittent operation. With bidirectional rotation and zero internal leakage, the 109A is perfect for spaces where size and noise are constraints. Ideal for mini fork lifts and medical equipment.
Share this:
Introducing the dynamic 109A Hydraulic Power Unit, the cornerstone of efficiency and reliability for a variety of applications. This state-of-the-art unit is a marvel of engineering, featuring a compact DC motor, a high-performance gear pump, and a robust oil tank. The design facilitates multiple hydraulic oil routes, catering to a vast range of operational requirements. The 109A is also available in several configurations, allowing for single or bi-directional rotation to suit any mechanical setup.
Applications
The flexibility of the 109A allows it to be an integral part of various sectors. It’s an essential component for mini fork lifts, lifting platform trolleys, medical equipment, and small process equipment. Its reliability and efficient design make it a prime choice for demanding environments.
Product Specifications and Design
The 109A is a key component of Rotontek’s 109 Series power units, which are self-contained systems featuring internal valving, load hold checks, and relief valves. Offering standard pump sizes that deliver flows of 0.25, 0.32, 0.38, and 0.45 cc/rev, this series effectively meets a wide range of demands. Moreover, the zero-leakage design of the check valves ensures fluid retention without any loss.
Additionally, the compact dimensions of the 109A make it perfectly suited for applications where space is limited. The aluminum oil tank not only reduces the overall volume but also enhances the unit’s durability.
Parameter | Value |
---|---|
Machine Type | 109A |
Motor | 12: 350W, 12V DC (109A) |
Gear Pump Displacement | 25: 0.25 CC/REV, 32: 0.32 CC/REV |
Oil Route Option | BB Single acting oil route |
AA, CC, DD, EE Double acting oil route | |
Oil Tank Capacity | 01: 0.8L (Only 109B), 02: 1.2L |
03: 1.5L, 04: 2.0L, 05: 4.0L, 06: 6.0L | |
Oil Port Size | 01: 7/16-20 (SAE -4) |
02: G1/8 IN PIPE (BSPP), 03: 9/16-18 (SAE-6) | |
Standard Pressure | 20: 20MPA (2850PSI) |
Installation Direction | HA: Horizontal installation |
VC: Vertical installation |
109A Product size drawing
Oil route drawing
Advantages of the 109A
Here’s a revised version of the description for the 109A, focusing on improved readability through shorter sentences, more familiar words, and effective use of transition words:
Compact and Efficient Design: The 109A sports a compact design with a 350W, 12V DC motor, perfect for tight spaces without losing power. Its lightweight aluminum oil tank boosts durability and fights corrosion.
Versatile Performance: Offering gear pump displacements from 0.25 to 0.32 cc/rev, the 109A adapts to various flow needs across many industrial uses. It supports both single and double acting oil routes, enhancing its versatility.
Enhanced Safety Features: Safety is top-notch with bidirectional interlocks, improving control and ensuring safe bi-directional rotation—vital for complex setups.
Zero Internal Leakage: Its check valves prevent leaks, maintaining system integrity and boosting reliability while cutting down on maintenance.
Intermittent Working System: Built for intermittent duty, the 109A operates under high pressure for short bursts. This design helps extend its life and saves energy, perfect for non-continuous applications.
Low Noise Operation: The 109A ensures a quiet workspace, ideal for noise-sensitive environments like medical facilities or indoor areas.
Manual Operation Capability: It can also be manually operated in the absence of electric power, keeping it functional and minimizing downtime during critical moments.
Rotontek’s Commitment
Rotontek stands for quality and innovation. The 109A unit showcases this with its meticulous design and versatile functionality. It’s not just a component; it’s your gateway to enhanced operational efficiency and reliability. Discover the difference with Rotontek’s 109A Hydraulic Power Unit.
