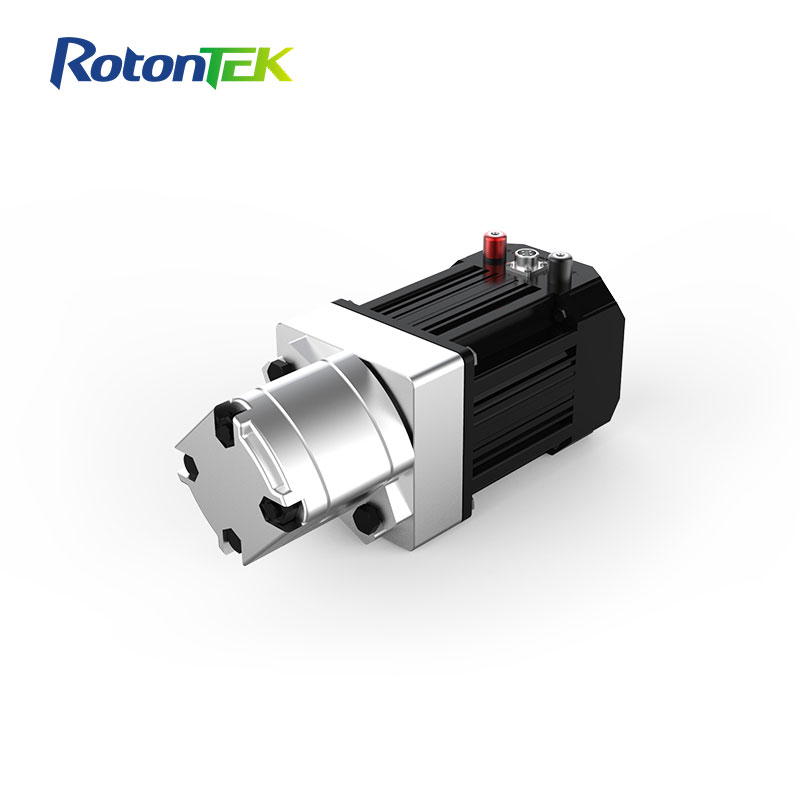

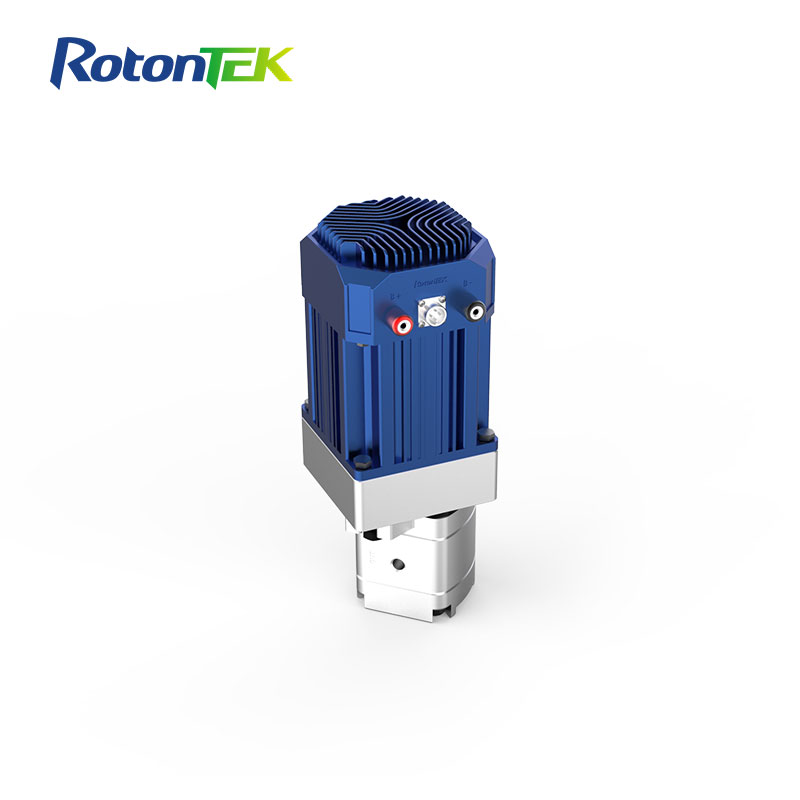

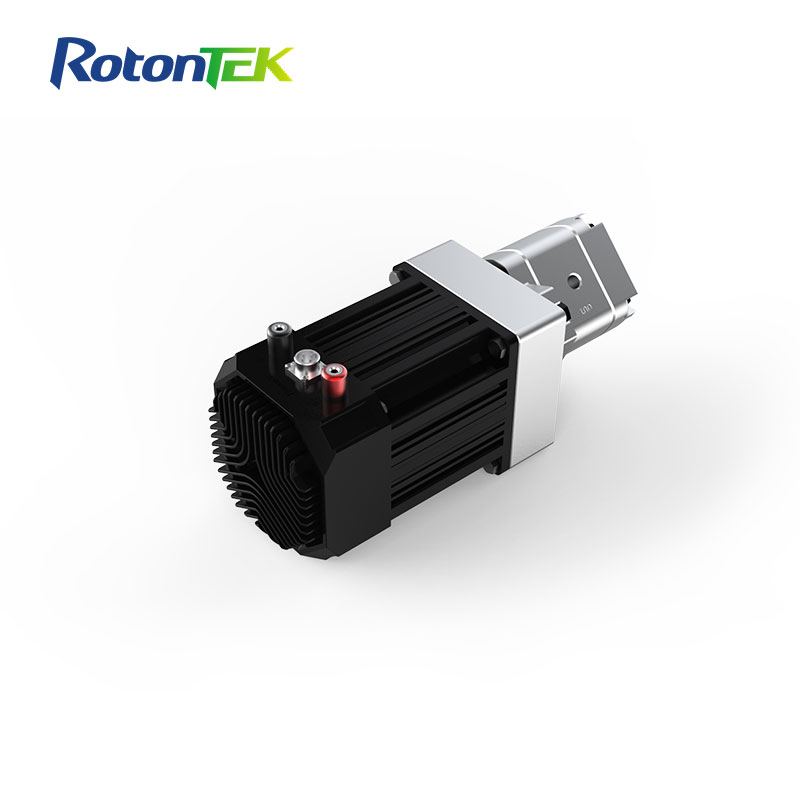

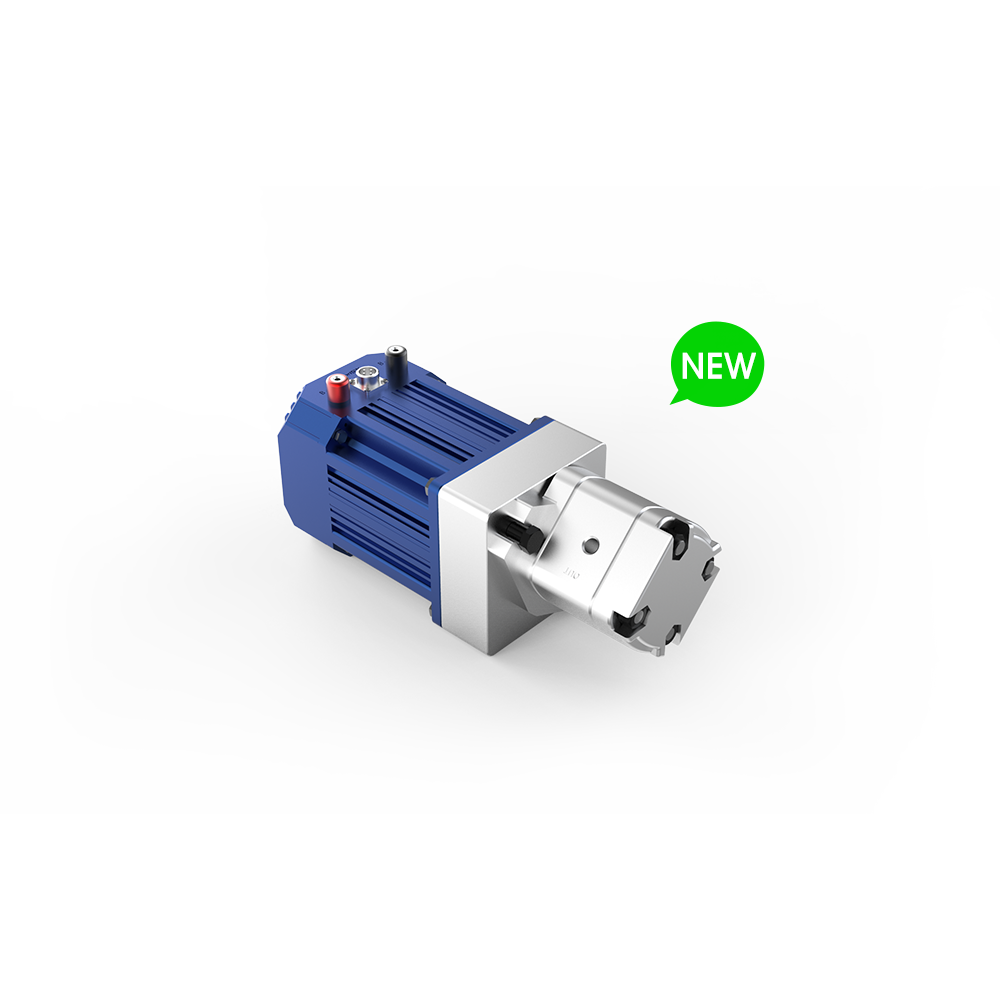

800W Integrated Brushless Motor Pump
Rotontek’s 800W Integrated Brushless Motor Pump excels in automation, combining high efficiency, durability, and low noise in a compact, all-in-one design, perfect for varied industrial applications.
Share this:
The Rotontek 800W Integrated Brushless Motor Pump is a state-of-the-art solution for automation applications, representing a significant leap in technology. This product, designed for factory direct sales, excels in its all-in-one design, combining high efficiency, long lifespan, and low noise operation.
Specifications
- All-in-One Design: Integrates motor, controller, and pump for compact efficiency.
- High Efficiency: Maximizes performance with minimal energy use, ideal for demanding applications.
- Long Lifespan: Engineered for durability, reducing the need for frequent replacements.
- Low Noise Operation: Perfect for environments where noise is a concern, operating below 60dB.
Rotontek’s Distinct Advantages
- Standardized Production: Guarantees consistent and reliable quality across all units.
- Quality Assurance: Every product undergoes rigorous testing to ensure peak performance.
- Custom Solutions: Offers personalized options to cater to unique customer needs.
- Support for Customization: Adaptable designs to fit specific industrial applications.
- Refined Service System: Comprehensive after-sales service and technical support.
Broad Application Range
The Rotontek 800W Integrated Brushless Motor Pump showcases innovative construction and design, making it a standout in the industrial automation sector. Crafted with high-grade materials, it offers enhanced durability and superior performance. The precision in its manufacturing process ensures unparalleled quality and reliability. Its compact and elegant design not only adds to the aesthetic appeal but also facilitates easy installation and efficient space utilization. This versatility extends to a wide array of applications, making it ideal for various scenarios.
The key applications of this motor pump is in:
- Automated Guided Vehicles (AGVs)
- Rail Guided Vehicle (AGV)
- Small excavator articulating arm climbing vehicle
- Electric tractor truck

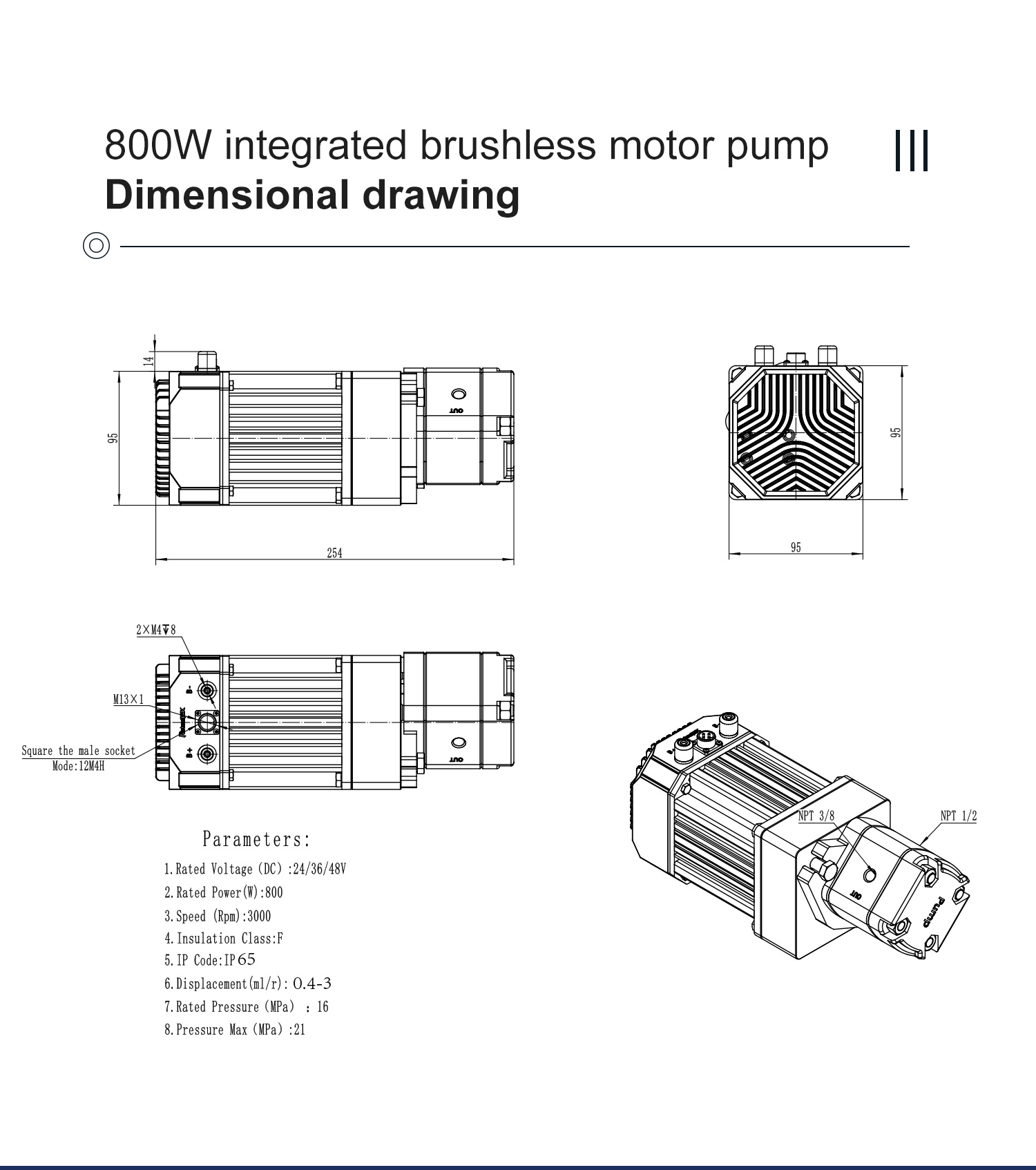

Detailed Product Parameters
Specification | Details |
---|---|
Rated Voltage | DC24/36/48V |
Rated Power | 800W |
Rotating Speed | 3000Rpm |
Insulation Level | F |
Protection Level | IP65 |
Motor Type | Brushless Motor |
Discharge | 0.4-3 ml/r |
Rated Pressure | 16 MPa |
Max Pressure | 21 MPa |
Model | LDMP24-00 (D90Motor pump) |
Superior Features
- High-Quality Motor Pumps: Made from excellent materials for energy efficiency.
- Automated Winding Technology: Utilizes pure copper coils for stability and longevity.
- High Hardness Bearing: Ensures low vibration and noise with a strong dust-proof effect.
- Integral Brushless Motor Design: Combines efficiency and aesthetics in a compact form.

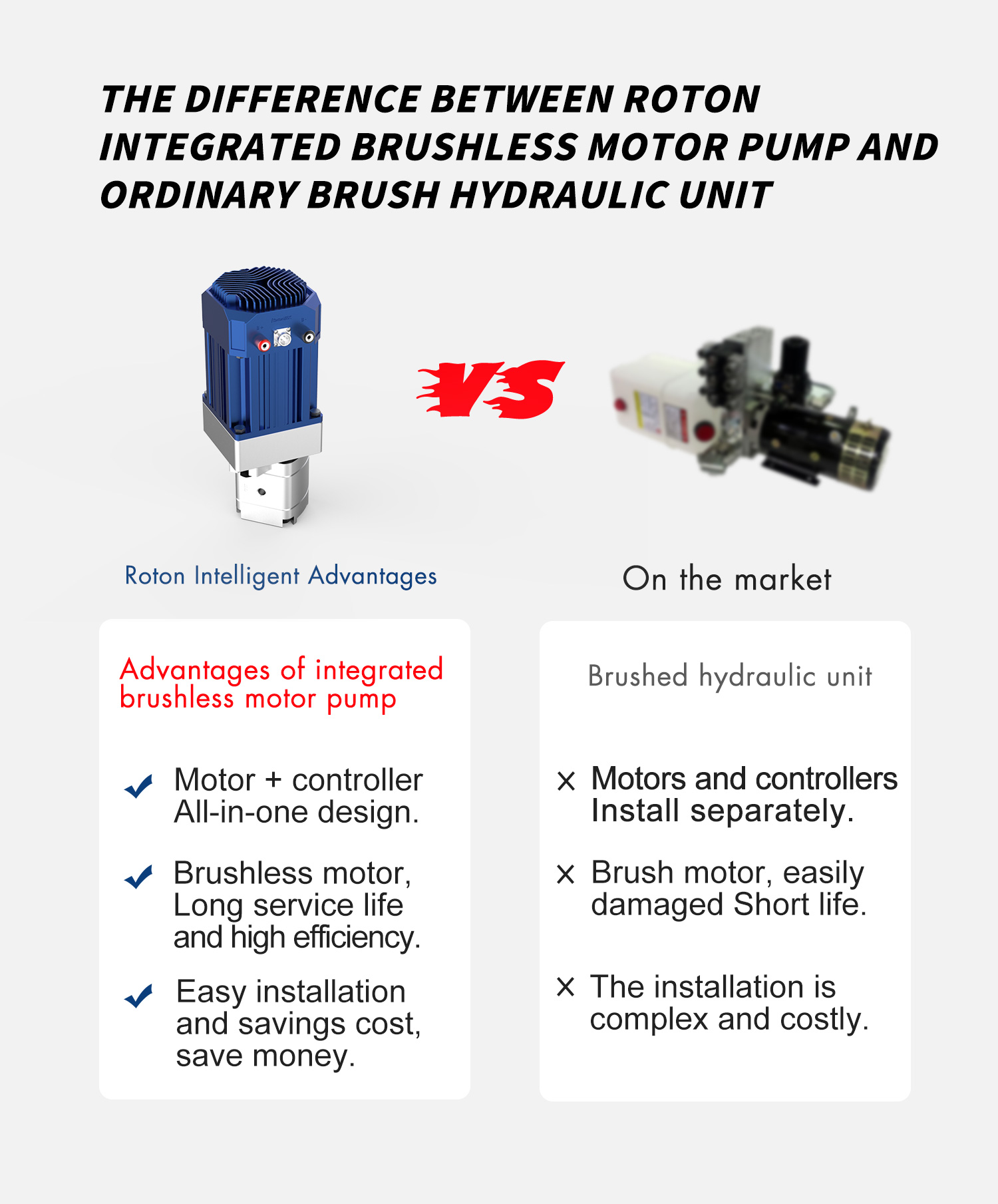

Comparative Analysis with Conventional Brush Hydraulic Units
- Integrated Design: Rotontek’s pump combines the motor and controller, simplifying installation and reducing costs.
- Durability: The brushless motor extends the lifespan and maintains high efficiency.
- Cost-Effectiveness: Simplifies installation processes, saving time and money.
In contrast, conventional brushed hydraulic units often require separate installations for motors and controllers, leading to increased complexity and higher costs. They also tend to have a shorter lifespan due to the brush motor design.
Rotontek’s innovative approach in the 800W Integrated Brushless Motor Pump provides a harmonious blend of efficiency, longevity, and environmental consciousness. This product is a testament to Rotontek’s commitment to advancing industrial automation technology, offering a powerful, efficient, and reliable solution for a wide array of applications.
